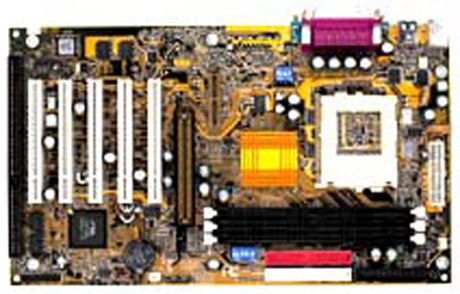

Placa Base GIGABYTE GA-6VXC7-4X-P VIA 694X Chipset ATX

Procesador

•     Socket 370 Intel ® FC-PGA Pentium ® III or other compatible
•     Clock multiplier 3.0/3.5 ...... /9.5
•     AUTO detect CPU voltage
•     66/75*/83*/100/112*/124*/133*/140*/150* MHz FSB

Chipset     North Bridge:

    VIA 694X & 686B AGPset (for GA-6VXC7-4X-P)

South Bridge:

    VIA 694X & 686A AGPset (for GA-6VXC7-4X)

Memoria

    3 x 168-pin DIMM slots
    Soporta módulos DRM 72bit del tipo ECC
    Supports PC100 / PC133 SDRAM and VCM SDRAM
    Supports only 3.3V SDRAM DIMM
    1.5GB DRAM

Zócalos de Expansión

    5 x PCI slots (PCI 2.2 compliant)
    1 x AGP 4x mode & AGP 2.0 compliant
    1 x AMR (Audio Modem Riser)
    1 x ISA 16-bit

Monitorización Hardware

    System voltage detect (Vcore,Vcc3,Vcc,+12V)
    Detección de la temperatura de CPU/Sistema
    CPU/System fan revolution detect
    CPU overheat shutdown detect

BIOS

    AMI BIOS with enhanced ACPI feature for PC98/Win98/WinME/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    AC recovery ON/OFF control
    2 Mbit flash ROM
    Supports @BIOS™ Live Update utility

Otras Características

    EasyTune ™ 3
    Wake On LAN Header (WOL)
    Wake-On-Ring (WOR)
    Poly fuse for keyboard overcurrent protection

Software Incluido

    GIGABYTE Windows Utility Manager

Alimentación

    ATX power connector
    Power-on by LAN, RTC, Modem & Switch
    Power-off by Windows® 95/98/2000 shut down and switch

Formato

    ATX, 4 layers PCB, 305mm x 181mm

Driver

    VIA 4 in 1 service pack utility

E/S

    2 x UDMA ATA 33/66/100 Bus Master IDE (for GA-6VXC7-4X-P)
    2 x UDMA ATA 33/66 Bus Master IDE (for GA-6VXC7-4X)
    1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    2 x USB
    IrDA header ready
